Rogers AD255C Substrates are RF laminate material using in Automotive telematics antenna systems

Rogers AD255C Substrates are RF laminate material using in Automotive telematics antenna systems

Nombre De Pièces: 1pcs
Prix: 0.99-99USD/PCS
Emballage Standard: Emballage
Période De Livraison: 2-10 jours ouvrables
Méthode De Paiement: T / t, paypal
Capacité D'approvisionnement: 50000pcs
Les informations détaillées
Lieu d'origine
Chine
Nom de marque
Rogers
Certification
ISO9001
Numéro de modèle
AD255C
Quantité de commande min:
1pcs
Prix:
0.99-99USD/PCS
Détails d'emballage:
Emballage
Délai de livraison:
2-10 jours ouvrables
Conditions de paiement:
T / t, paypal
Capacité d'approvisionnement:
50000pcs
Description du produit

What circuit boards do we do? (34)

AD255C High Frequency PCB



Introduction

Rogers AD255C laminates are a sophisticated blend of a fluoropolymer resin system, carefully selected ceramic elements, and fiberglass reinforcement. By leveraging the exceptional thermal properties of fluoropolymer resin, alongside the strategic integration of ceramic materials and fiberglass reinforcement, AD255C materials stand out for their reduced loss, lower thermal expansion characteristics, and minimized passive intermodulation (PIM) effects. This unique combination results in a specialized RF laminate material that excels in a variety of microwave and RF applications within telecommunication infrastructure.

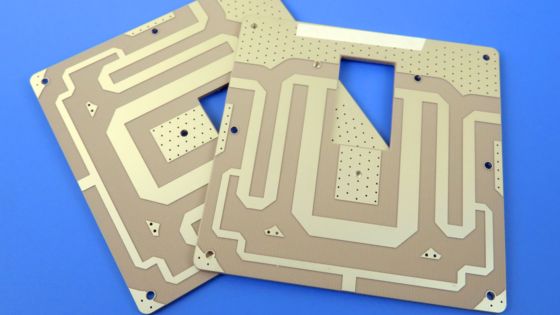

Rogers AD255C Substrates are RF laminate material using in Automotive telematics antenna systems 0



Features

The AD255C boasts several remarkable features, including:



Very Low Loss PTFE and Ceramic Filled Composite: This advanced composite merges PTFE with ceramic fillers, resulting in exceptionally low signal loss, making it perfect for high-frequency applications.



Exceptional Loss Tangent: With a loss tangent of only 0.0014 at 10 GHz and base station frequencies, this material guarantees efficient signal transmission, minimizing energy waste and enhancing overall performance.



Dielectric Constant of 2.55: The material features a dielectric constant of 2.55, providing reliable electrical insulation with tight tolerances, which is vital for maintaining signal integrity in sensitive applications.



Low Profile Copper: The inclusion of low profile copper enhances conductivity while preserving a compact design, making it ideal for space-constrained environments.



Low Z-Direction CTE: With a coefficient of thermal expansion (CTE) of 50 ppm/°C in the Z-direction, this material offers excellent dimensional stability across temperature variations, ensuring consistent performance under a wide range of operating conditions.



PCB Capability

PCB Material: Glass-reinforced, PTFE based Composites
Designation: AD255C
Dielectric constant: 2.55 (10 GHz)
Dissipation Factor 0.0014 (10 GHz)
Layer count: Double Sided PCB, Multilayer PCB, Hybrid PCB
Copper weight: 1oz (35µm), 2oz (70µm)
Dielectric thickness: 20mil (0.508mm), 30mil (0.762mm), 40mil (1.016mm), 60mil (1.524mm), 125mil (3.175mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red, Purple etc.
Surface finish: Immersion gold, HASL, Immersion silver, Immersion tin, OSP, ENEPIG, Bare copper, Pure gold etc..



We offer a diverse range of PCB manufacturing capabilities to meet your project specifications, including double-sided PCBs, multi-layer PCBs, and hybrid boards.



Copper weight options available in 1oz (35µm) and 2oz (70µm), as well as various dielectric thickness options ranging from 20mil (0.508mm) to 125mil (3.175mm).



The maximum PCB size we can accommodate is 400mm x 500mm, whether as a single board within these dimensions or multiple designs on a panel of this size.



In terms of solder mask options, we provide a selection of colors such as Green, Black, Blue, Yellow, Red, Purple, and more.



Moreover, we offer a range of surface finish options, including Immersion gold, HASL, Immersion silver, Immersion tin, OSP, ENEPIG, Bare copper, Pure gold plated, and others to suit various preferences and requirements.





Applications

Typical applications of AD255C PCBs include Cellular infrastructure base station antenna, Automotive telematics antenna systems and Commercial satellite radio antenna etc.



Thank you for tuning in! We appreciate your time and look forward to seeing you next time.
