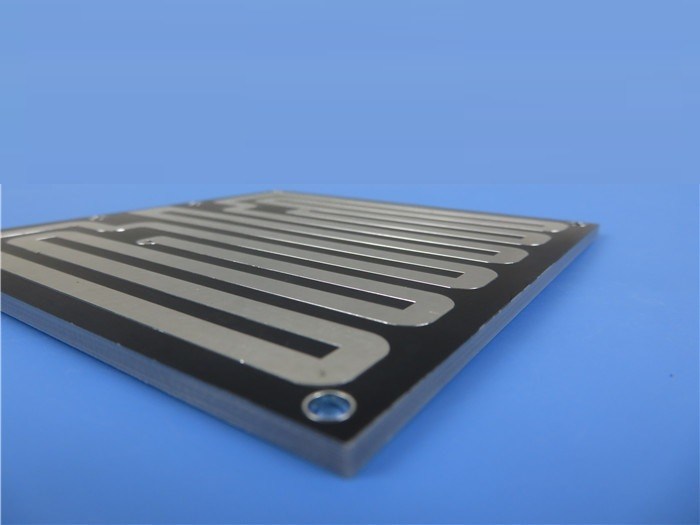

This is a type of high frequency PCB which is built on Wangling’s TP1020 substrate (DK 10.2). It is a double layer build up on 5.0mm laminate. Surface finish is hot air soldering level (HASL) with black solder mask. Both layers are 1 oz copper finished. The boards are fabricated per IPC 6012 Class 2 using supplied Gerber data. Every 20 boards are packed for shipment.

PCB Specifications

PCB SIZE	50 x 61mm=1up
BOARD TYPE	Double sided PCB
Number of Layers	2 layers
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 35um(0.5 oz+plate) TOP layer
	TP1020 - 5.0mm
	copper ------- 35um(0.5 oz + plate) BOT Layer
TECHNOLOGY
Minimum Trace and Space:	197 mil / 118 mil
Minimum / Maximum Holes:	2.0 mm / 6.0 mm
Number of Different Holes:	2
Number of Drill Holes:	8
Number of Milled Slots:	0
Number of Internal Cutouts:	0
Impedance Control:	no
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	TP1020 DK 10.2
Final foil external:	1.0 oz
Final foil internal:	N/A
Final height of PCB:	5.1 mm ±0.12
PLATING AND COATING
Surface Finish	HASL Lead free
Solder Mask Apply To:	Top layer
Solder Mask Color:	Black
Solder Mask Type:	LPI
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	N/A
Colour of Component Legend	N/A
Manufacturer Name or Logo:	N/A
VIA	Plated through hole(PTH), minimum size 2.0mm.
FLAMIBILITY RATING	94V-0
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

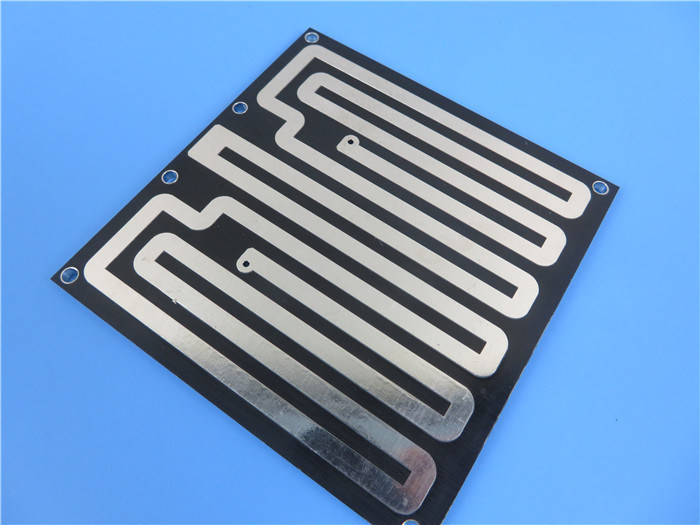

TP1020 High Frequency Printed Circuit Board 5.0mm Alternative High DK RF PCB 0

Typical Applications

1.Aircraft Collision Avoidance Systems

2.GPS Antennas

3.Microstrip Patch Antennas

4.Passive Components (filters, couplers, power dividers)

5.Satellite Components

TP-1/2 High Frequency Laminates

TP material is a unique high-frequency thermoplastic material in the industry. The dielectric layer of TP-type laminates consists of ceramics and polyphenylene Oxide resin (PPO), without fiberglass reinforcement. The dielectric constant can be precisely adjusted by adjusting the ratio between ceramics and PPO resin. The production process is special, and it has excellent dielectric performance and high reliability. TP refers to the smooth surface material without copper cladding, TP-1 refers to the material with copper cladding on one side, and TP-2 refers to the material with copper cladding on both sides.

Data Sheet (TP Laminates)

Product Technical Parameter

Product Models & Data Sheet

Product Features

Test Conditions

Unit

TP TP-1 TP-2

Dielectric Constant

When the dielectric constant is ≤11, the test condition is 10GHz.

When the dielectric constant is >11, the test condition is 5GHz.

3.0±0.06

4.4±0.09

6.0±0.12

6.15±0.12

9.2±0.18

9.6±0.19

10.2±0.2

11.0±0.022

16.0±0.4

20.0±0.8

22.0±0.88

25.0±1.0

The dielectric constant can be customized within the range of 3.0 to 25.

Dielectric Constant Tolerance

Dielectric Constant 3.0～11.0

±2%

Dielectric Constant 11.1～16.0

±2.5%

Dielectric Constant 16.1～25.0

±4%

Loss Tangent

Loss Tangent 3.0～9.5

10GHz

0.0010

Loss Tangent 9.6～11.0

10GHz

0.0012

Loss Tangent 11.1～16.0

5GHz

0.0015

Loss Tangent 16.1～25.0

5GHz

0.0020～0.0025

Dielectric Constant Temperature Coefficient

Dielectric Constant 3.0～9.5

-55 º~150ºC

PPM/℃

-50

Dielectric Constant 9.6～16.0

-55 º~150ºC

PPM/℃

-40

Dielectric Constant 16.1～25.0

-55 º~150ºC

PPM/℃

-55

Peel Strength

1 OZ Normal State

N/mm

>0.6

1 OZ After AC Humidity Test

N/mm

>0.4

Volume Resistivity

Normal State at 500V

MΩ.cm

>1×109

Surface Resistivity

Normal State at 500V

MΩ

>1×107

Coefficient of Thermal Expansion
(XY Z)

Dielectric Constant 3.00～4.40

-55 º~150ºC

PPM/℃

60,60,70

Dielectric Constant 4.60～6.15

-55 º~150ºC

PPM/℃

50,50,60

Dielectric Constant 6.16～11.0

-55 º~150ºC

PPM/℃

40,40,55

Dielectric Constant 11.1～16.0

-55 º~150ºC

PPM/℃

40,40,50

Dielectric Constant 16.1～25.0

-55 º~150ºC

PPM/℃

35,35,40

Water Absorption

20±2℃, 24 hours

≤0.01

Long-Term Operating Temperature

High-Low Temperature Chamber

℃

-100º~150ºC

Material Composition

Polyphenylene ether, ceramic, paired with ED copper foil.

The density and thermal conductivity data for materials with different dielectric constants are as follows:

Product Features

Unit

Dielectric Constanct

3.0

4.4

6.0

6.15

9.6

10.2

11.0

16.0

20.0

22.0

25.0

Density

g/cm3

1.69

1.89

2.1

2.12

2.26

2.33

2.40

2.76

2.73

2.77

2.94

Thermal Conductivity

W/(M.K)

0.40

0.44

0.55

0.65

0.67

0.70

0.80

0.85

0.90

1.0

Other Available High Frequency Materials

Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.

Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.

Rogers TMM4, TMM10, Kappa 438 etc.

PTFE F4B DK2.2, DK2.65

Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-35TC, RF-35, TLF-35, RF-60A, RF-60TC, RF-35, RF-35A2, RF-45, TRF-45, RF-10 etc.

AD450, AD600, AD1000, TC350 etc.
